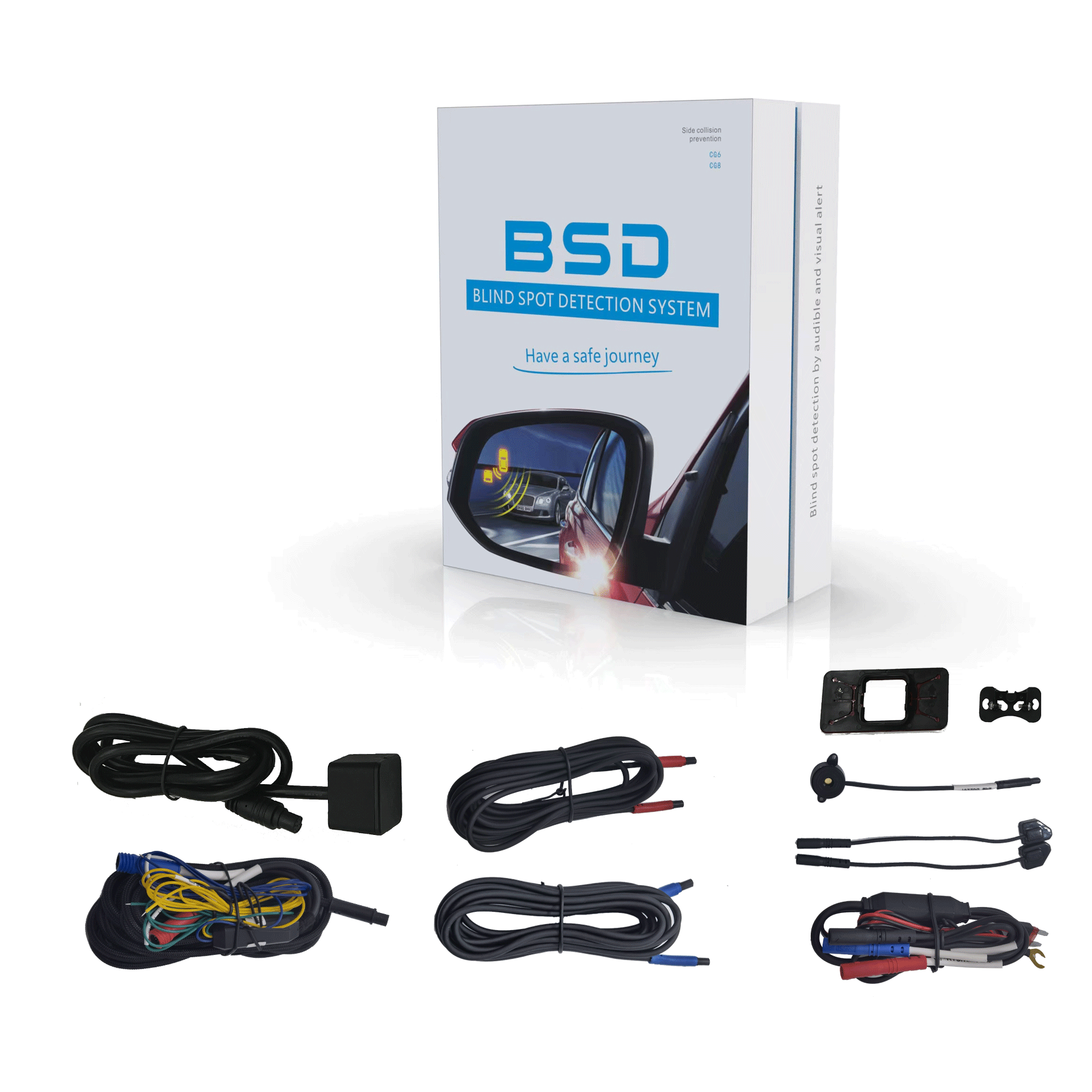

A5-BSD

A8-BSD

What is BSD blind spot monitoring

In order to avoid the harm caused by the blind spot, a millimeter-wave radar probe is installed on the rear bumper of the car to detect vehicles in the blind spot. As long as a vehicle enters the blind spot, an audible and visual alarm will be used to remind the driver of the danger of changing lanes at this time.

The BSD blind spot monitoring lane change assist system can provide early warning of dangerous targets in the left and right adjacent lanes. The system includes five driving safety warning functions: BSD monitoring warning, LCA merging safety warning, DOW disembarking and opening safety warning, RCTA reversing crossing warning, and AOA active overtaking safety warning. Its unique ability to penetrate smoke, fog, and dust can Achieve all-weather, all-day application.

The difference between 24G and 77G

24G has a radar attribute of one transmitter and one receiver, and the longest detection distance is 20m, while 77G has two transmitters and four receivers, and the longest detection distance is 70m. It has more angle measurement, ranging, and speed measurement functions than the 24G one, and its performance is better. Complete and advanced, better experience.

77G Features

BSD Reversing lateral collision avoidance function

When reversing, the system will alarm targets (including vehicles, pedestrians, etc.) approaching the vehicle from the side and rear, and the alarm distance can be up to 15m.
The alarm area is shown in the video. There is no alarm for targets far away from the vehicle. The alarm is in the form of flashing alarm light and sounding alarm horn.

BSD monitoring Lane change assist function

When the target vehicle is far away from the vehicle and exceeds the blind spot, the system will issue an early warning based on the time to collision (TTC). When the TTC is less than 2.5 seconds, the warning light will stay on to remind the driver. If the left turn light is turned on at this time, the warning light will flash and the alarm horn will buzz (if configured and the horn is turned on) to warn the driver of the danger of changing lanes. The alarm distance is about 20 meters.

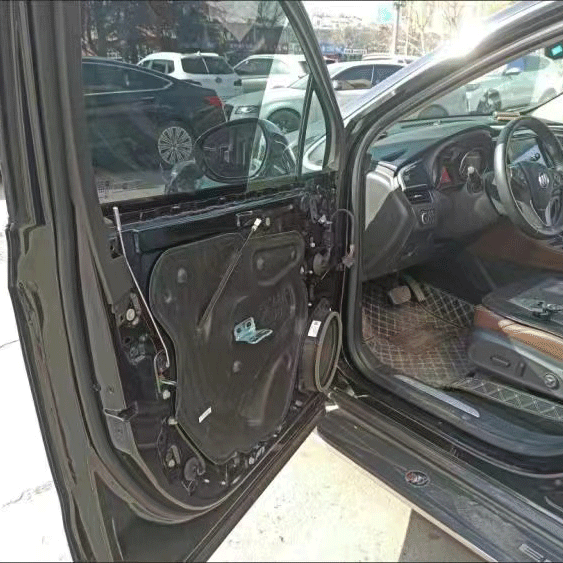

BSD Door opening warning function

When the vehicle is parked and the door is opened, if the door is opened. When there is a target within 25 meters behind the door, the LED light flashes and the buzzer warns the driver or passengers to pay attention to safety.

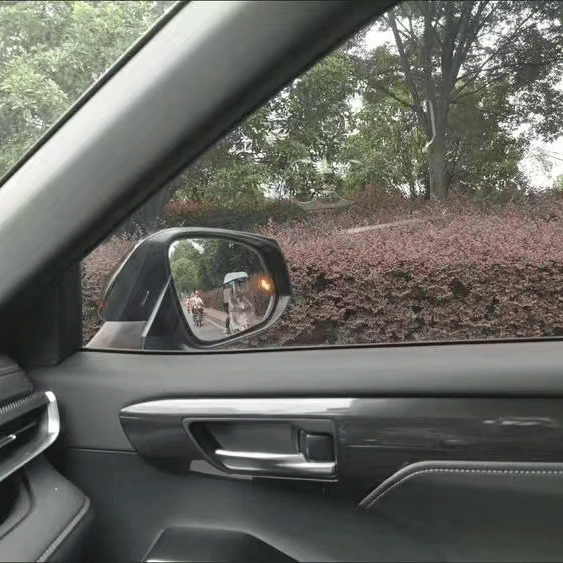

BSD Blind spot monitoring function

The system automatically starts when the vehicle speed is greater than 20km/h, and automatically turns off when the vehicle speed is less than 20km/h. The system performs real-time intelligent monitoring of moving targets (including cars, motorcycles, bicycles, pedestrians, etc.) in the monitoring area. The alarm area is from the B-pillar of the car to the adjacent lane area about 25 meters behind the rear of the car. When the alarm area When there is a moving target with a speed greater than 20km/h, the system starts an alarm.

BSD Start early warning function

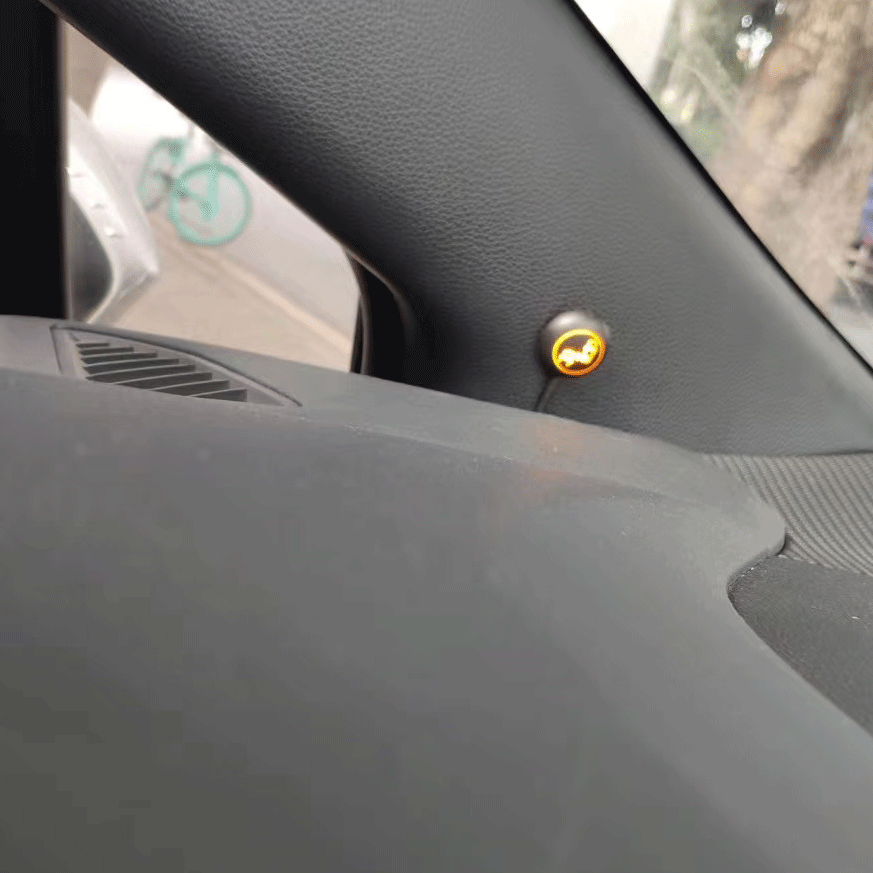

When there is a vehicle driving out of the driveway.The rearview mirror warning light yellow light is always on.Turn the turn signal and get ready to drive into the main road. The warning light of the rear oncoming vehicle flashes red.And there is an alarm to remind you.

BSD overtake warning function

The dual-collection radar can measure distance and angle, and know the distance and angle between the target and the vehicle. When we pass it, the radar detects the target, and the distance and angle between the target and the vehicle can be calculated. If the distance and angle satisfy The system will alarm according to the preset alarm conditions.

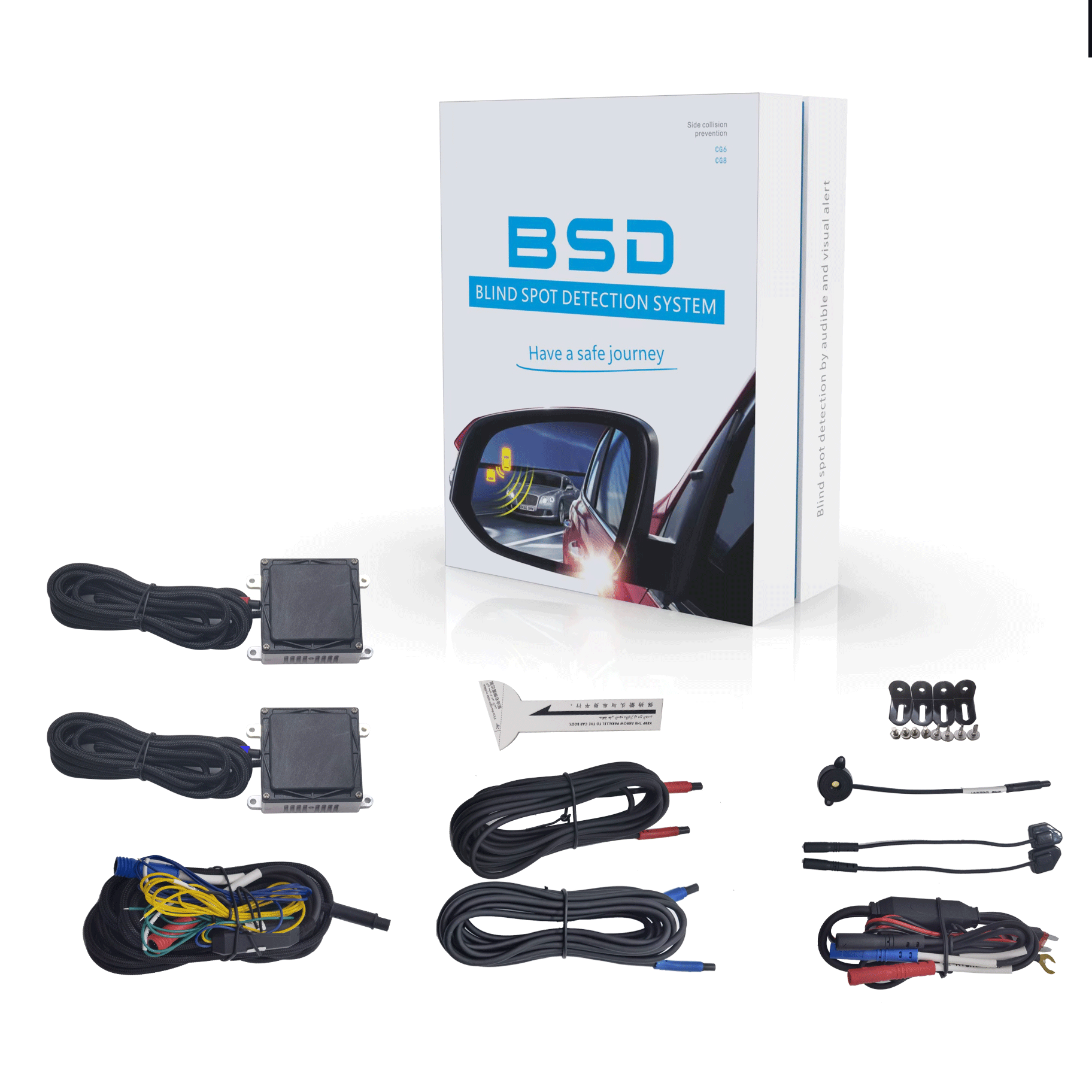

A5 and A8 product parameters

model	radar photo	type	Radar properties	Detection distance	Regular warning	Speed difference warning	waterproof level

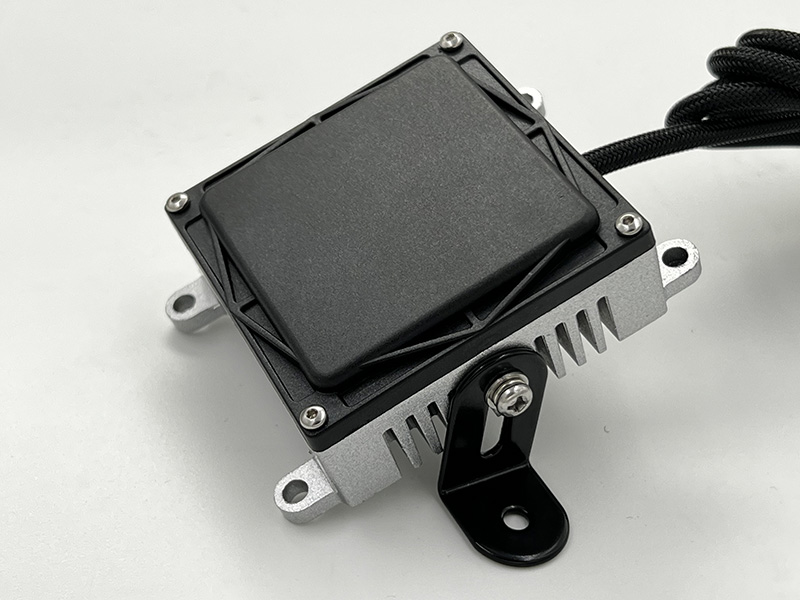

A5		77GHz single probe	77GHz millimeter wave Two shots and four catches	70m	8-10m	5S 40m	IP67
A8		77GHz dual probe	77GHz millimeter wave Two shots and four catches	70m	8-10m	5S 70m	IP67
model	radar photo	BSD Blind spot monitoring"	LCA approaching quickly Lane change warning	AOA takes the initiative Overtaking warning	Same speed Car following warning"	RCTA reverses crossing warning Speed difference trigger	DOW Opening warning"
A5		yes	yes	yes	yes	yes	yes
A8		yse	yes	yes	yes	yes	yes
